Product name: Router bottom case
Rubber material: PC+ABS
Product unit weight: 278g
Shrinkage: 5‰
Injection molding machine: 350T
Injection system: 6-point needle valve hot runner to submersible glue injection

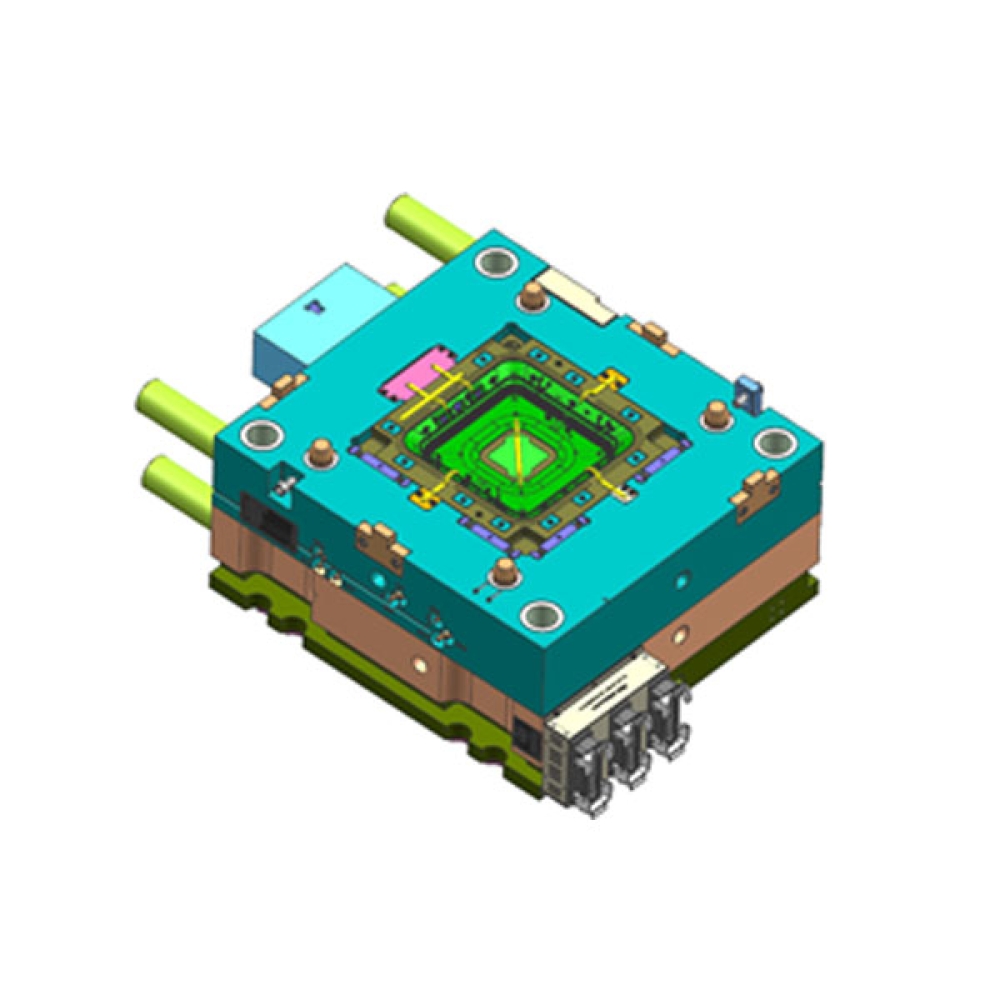

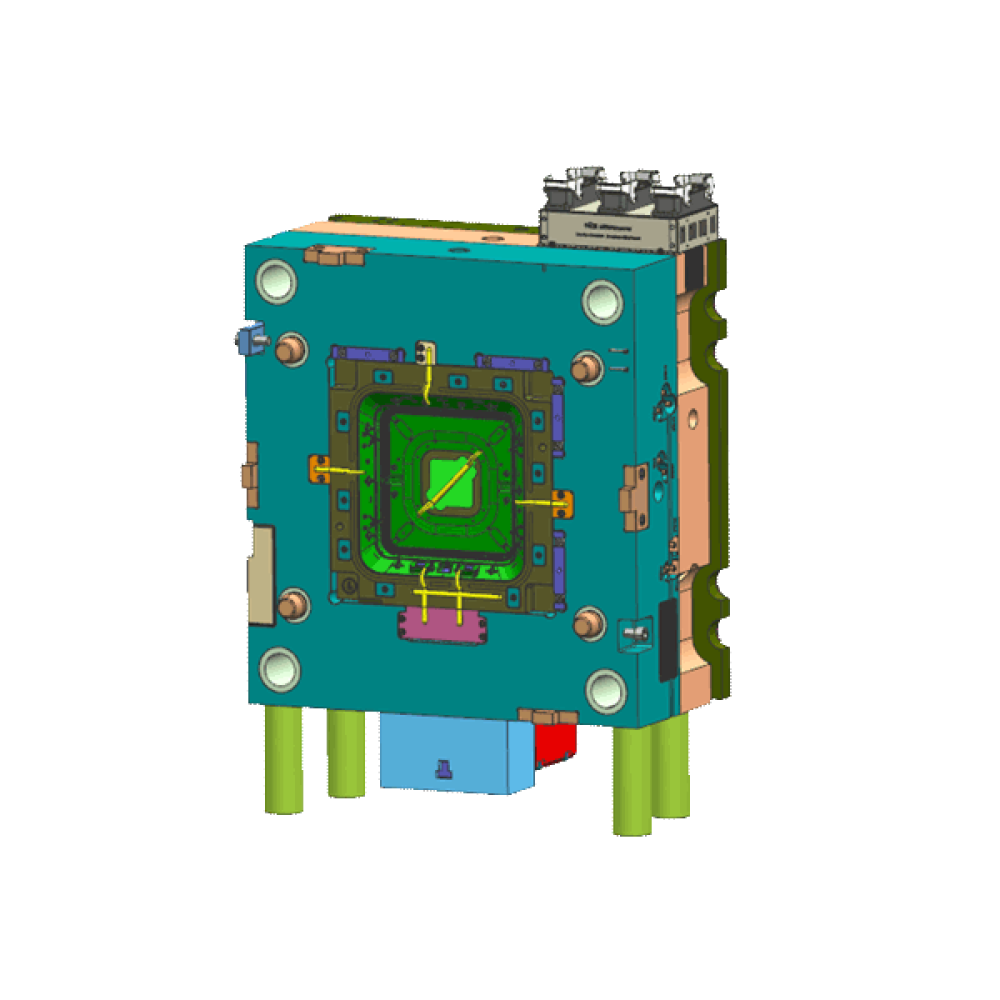

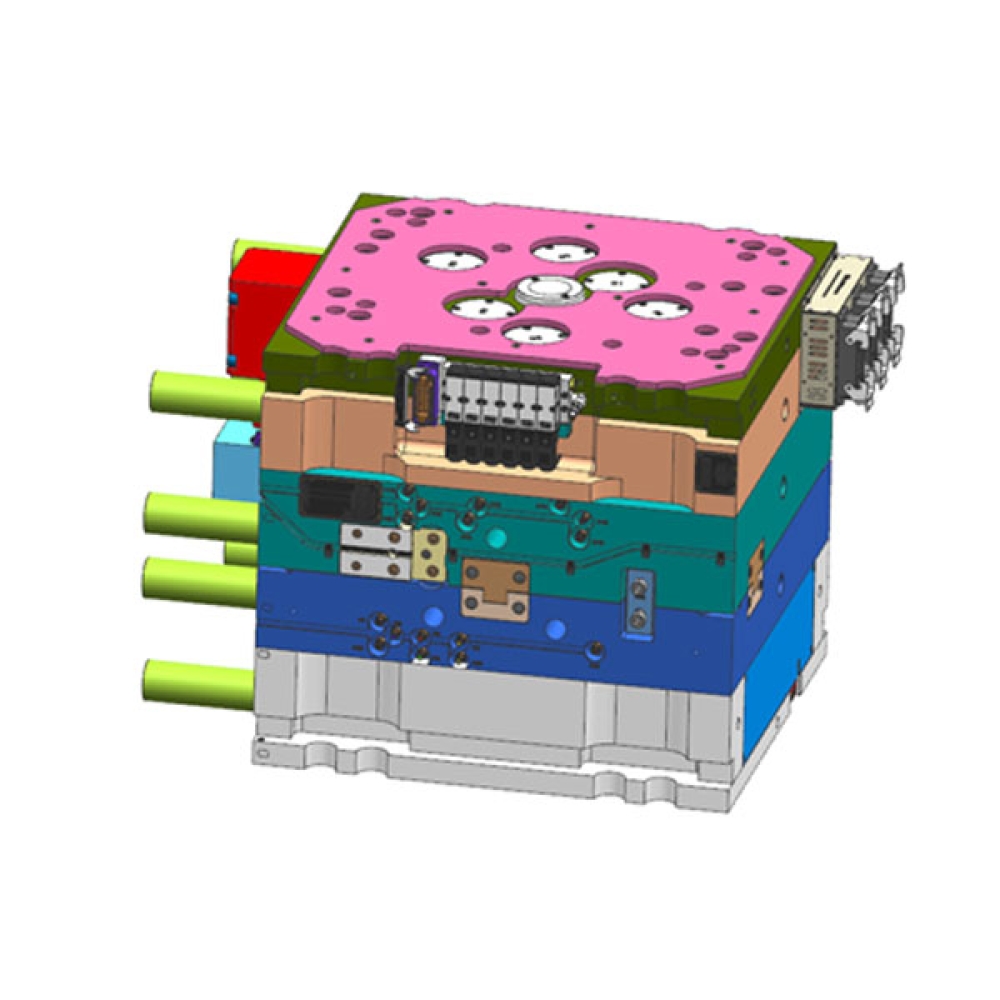

| product name | Router bottom case | Gum | PC+ABS |
| Product unit weight | 278g | Shrinkage | 5‰ |
| Injection molding machine | 350T | injection system | 6-point needle valve hot runner turns to submersible glue feeding |
| Number of mold cavities | 1*1 | Mold base standard | Metric standard, template P20 |
| Mold core material | Swedish ASSAB 8407 material | Mold size | 700X650X636mm |
| Mold weight | 1500kg | Mold structure | Front mold tunnel slider |
| design time | 1 week | manufacturing time | 5 weeks |
Mold material: mold base (the mold base is made of Longji P20 material), mold core (Swedish ASSAB 8407 material, front mold hardness HRC50~52, rear mold hardness HRC48~50), mold production life can reach 1 million mold times.
Mold tolerance: ±0.02mm accuracy, 10-year design team provides a complete set of drawing solutions.
Scope of application: Mainly used in household appliances, computer offices.
